Description

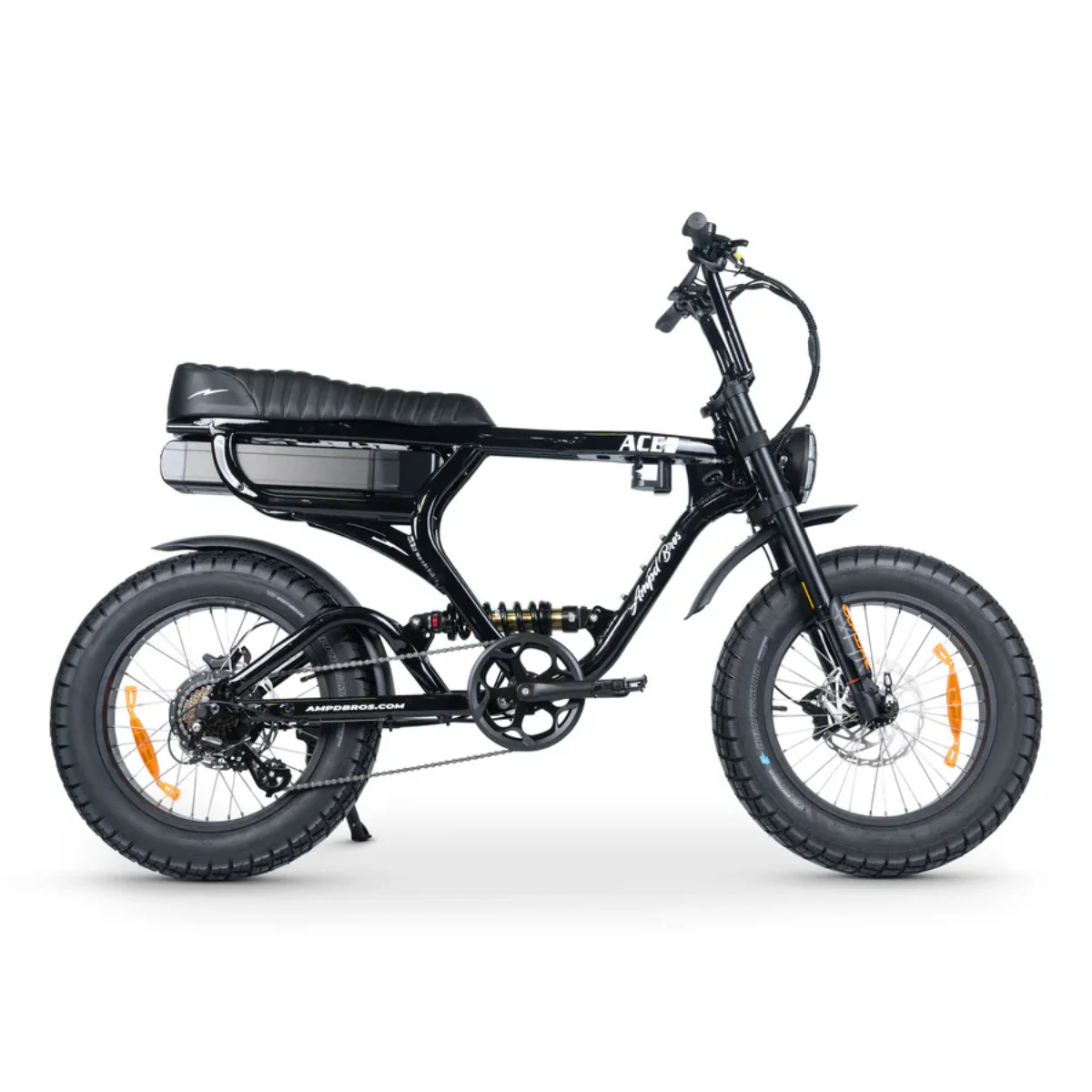

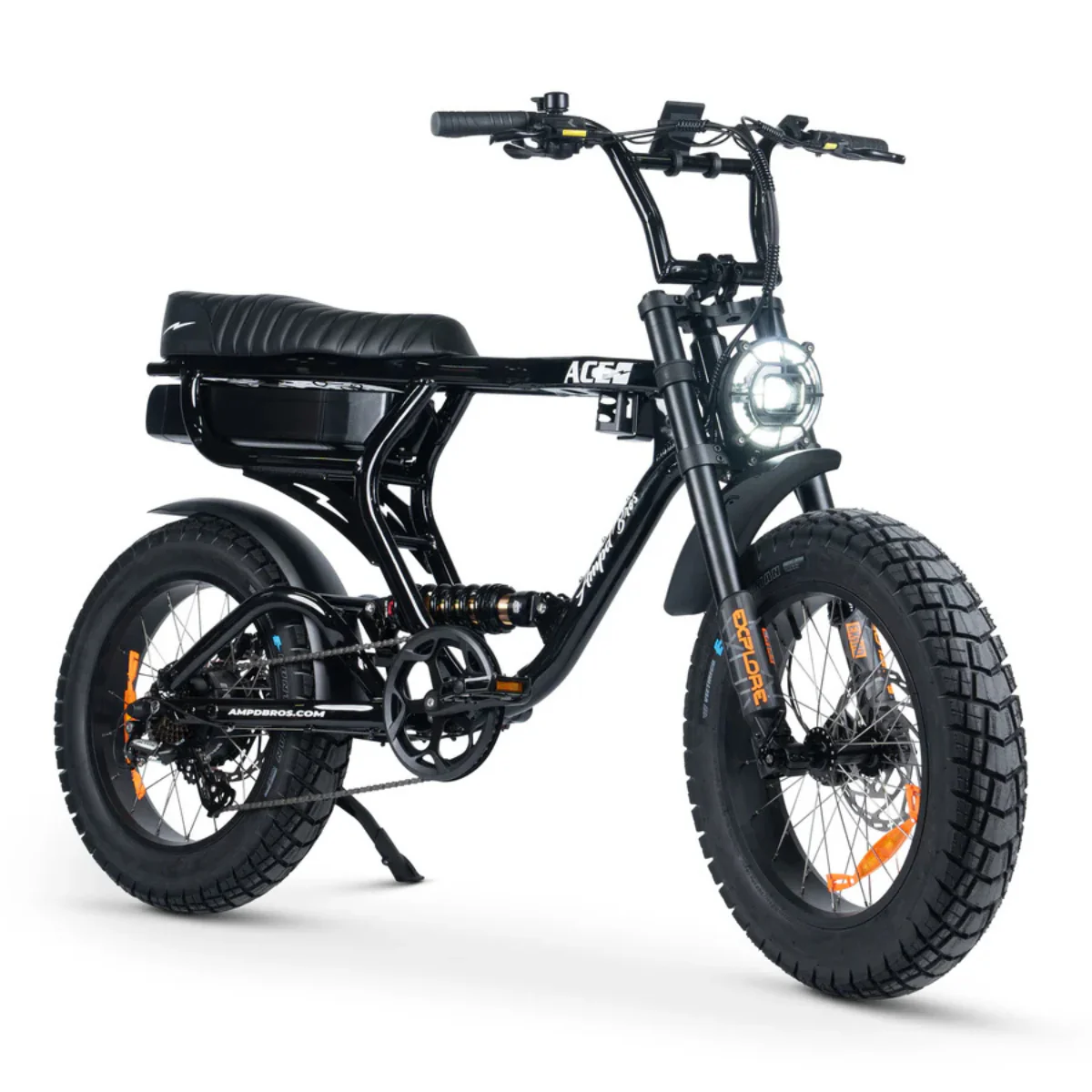

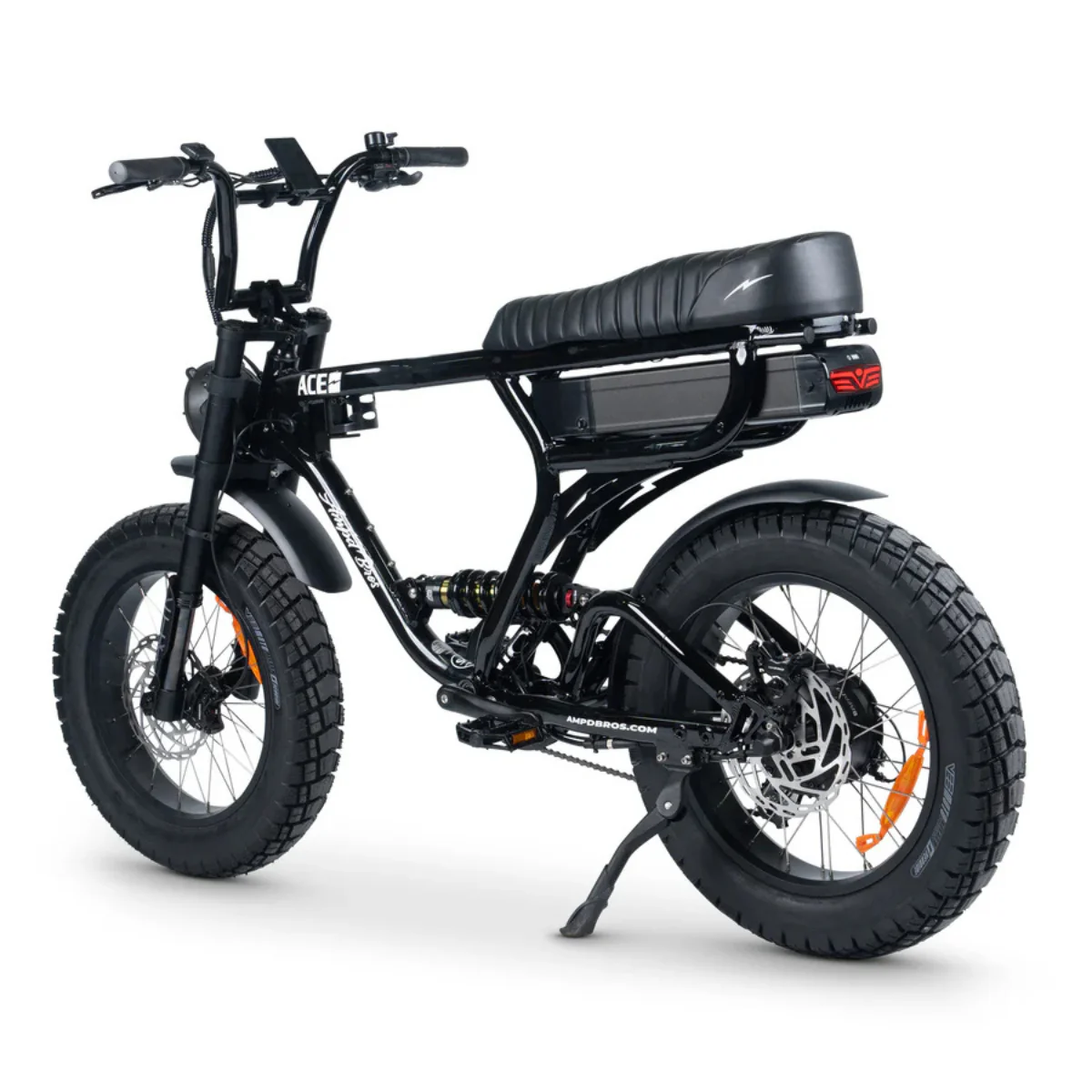

ACE-X PRO Electric Bike (Series 4)

Hold on tight, because the All-New Series 4 ACE-X PRO is here to completely redefine your riding experience. Inspired by the legendary heritage of the ACE model range, the ACE-X PRO takes a massive quantum leap forward. Say goodbye to the ordinary—this beast leaves its predecessors in the dust.

Engineered with an iconic high-crossbar “X” frame design, a massive dual-occupant plush seat, and heavy-duty dual suspension, the ACE-X PRO seamlessly blends rugged off-road performance with an aggressive, retro moped aesthetic. Whether you are tearing up sandy beaches, conquering steep hills, cruising dirt tracks, or commuting on city pavement, nothing can hold you back.

What’s New for Series 4?

The Series 4 update introduces engineered performance upgrades built directly from community feedback:

• Massive 52V 25Ah Battery: Packed with premium 21700 Samsung cells for unrivaled power delivery and long-range exploration.

• 4-Piston Tektro Hydraulic Brakes: Upgraded stopping power with massive 203mm rotors for high-safety braking in all conditions.

• Enhanced Front Suspension: Adjustable front fork with CNC bar clamps and an advanced through-axle setup for precision handling.

• Patented Rear Suspension Adjustment: A revolutionary frame design enabling 100mm of seat height adjustment (850mm to 950mm).

• Heavy-Duty Drivetrain: Upgraded aluminum cranks paired with a rust-resistant KMC Z-Series chain.

• Premium Aesthetics: Four stunning new metallic paint finishes, including the show-stopping Bronze Eclipse, Gloss Midnight Black, Gloss Jungle Green, and Matte Titanium.

Key Performance Features: ACE-X PRO Electric Bike

Insane Torque & Bafang Power

At the heart of the ACE-X PRO is the high-torque 95N.m Bafang Rear Hub Motor. This powerhouse delivers unprecedented acceleration and low-end torque on command, allowing you to breeze up steep 30° inclines (60% gradient) without breaking a sweat. While restricted to 25km/h for standard compliance, it features a peak output of 1,600W (1,000W Rated) managed by a custom Ampd Bro’s controller for best-in-class power density.

Premium Next-Gen Battery & Range

Go further with the GEN3 Aluminium Battery Pack. Utilizing premium Samsung 21700 lithium cells—which are 30% larger than standard competitor cells—and paired with an intelligent Smart BMS (Battery Management System), it safely delivers an incredible 100km+ range per charge. The battery is fully removable, locking securely into the frame, and can be charged on or off the bike.

Ultra-Smooth Dual Suspension Control

Say goodbye to rough bumps. The combination of an independent front adjustable suspension fork and a signature DNM adjustable rear shock provides unmatched dampening. Paired with ultra-wide, puncture-resistant 20×4.0″ Vee Tire Huntsman All-Terrain Tyres, this bike glides smoothly over jagged rocks, potholes, and deep sand.

Premium Comfort & Two-Rider Utility

Designed with versatility in mind, the ACE-X PRO features an extended, custom large quilted plush dual seat comfortably accommodating up to two riders. The motorcycle-inspired adjustable aluminum handlebars ensure an ergonomic riding stance for individuals up to 200cm tall, while a built-in, adjustable cup and bottle holder keeps refreshments within arm’s reach.

Technical Specifications

What’s Included in the Box?: ACE-X PRO Electric Bike

• Series 4 ACE-X PRO Electric Bike

• 52V 25Ah Premium Samsung Battery

• Standard 3A AUS Smart Charger (8.5-hour charge time)

• Ampd Bros Signature 800lm Front Headlight

• Front & Rear Matte Black Aluminum Fenders

• Heavy-Duty Kickstand & Wellgo Alloy Pedals

• Basic Assembly Tool Kit & User Manual
