Description

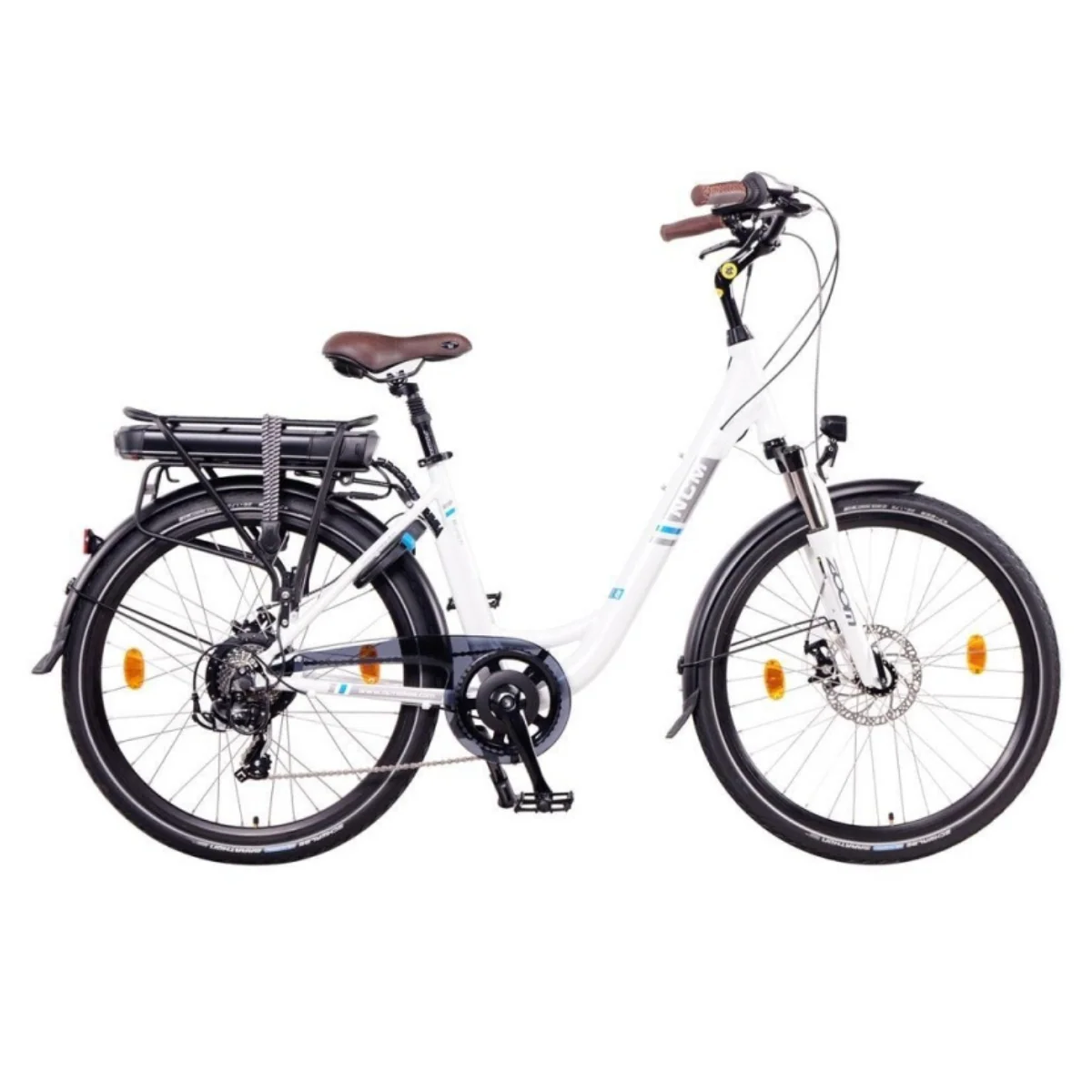

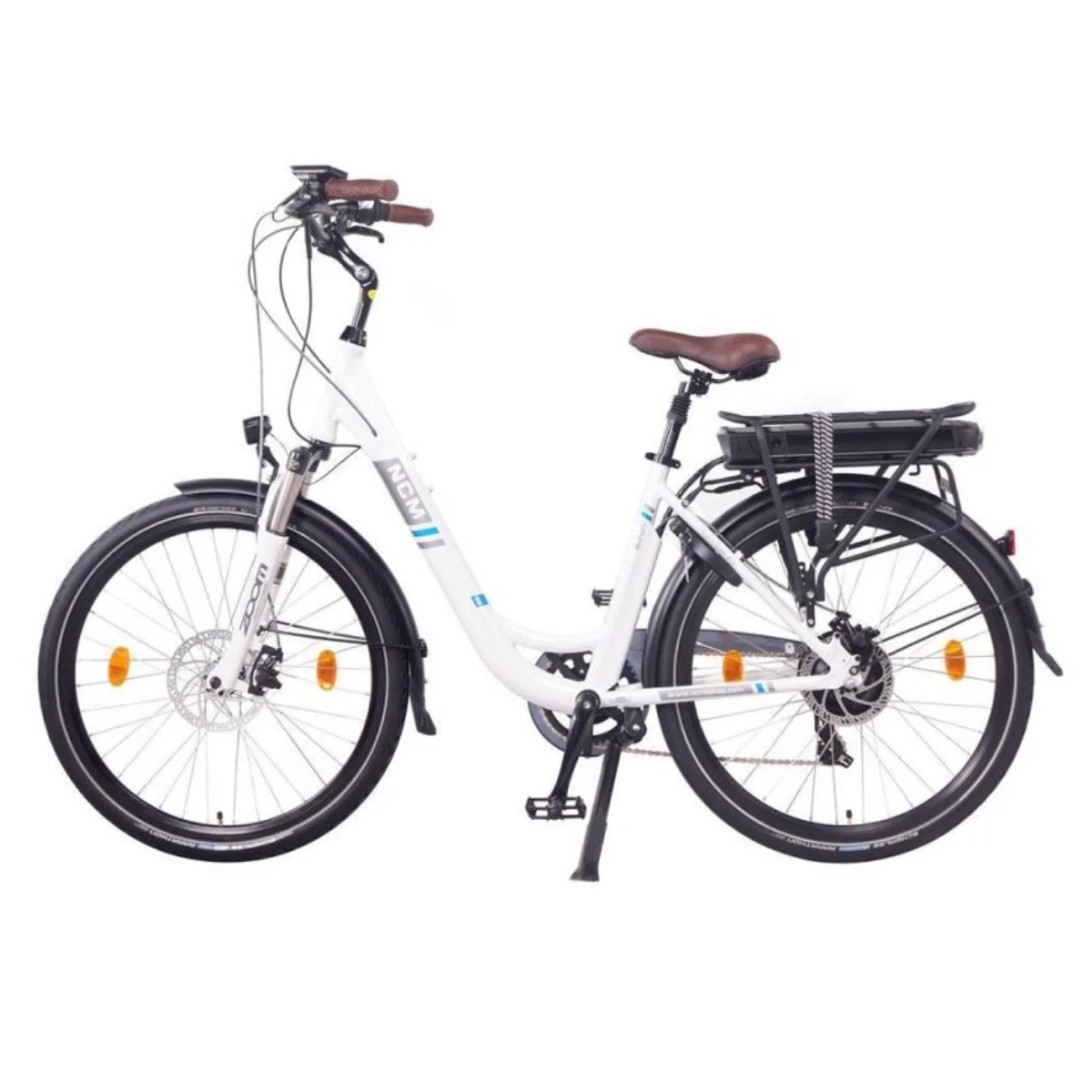

The NCM MUNICH is a step-through version based on our NCM Hamburg model. Mount and dismount with ease on the low-step design. The relatively light and sturdy aluminium alloy, the oversized frame comes in two sizes. The 36V battery and Das-Kit motor unite to power you through your daily commute or errand-running without the need to charge often. With several comfort and practicality features, such as seat post suspension, adjustable ergonomic riding position, a rear rack, and built-in bike lock, the NCM Munich is an ideal selection as a daily travel companion.
KEY FEATURES
– Ergonomic bicycle Grips
– Comfortable sitting posture
– All important controls easily accessible
– Supplied with 36V to deliver a high output power
– over 468Wh capacity for a longer distance
– reach up to 70 km (depending on the conditions)
– easily removable battery so you can charge it anywhere
SPECIFICATIONS
| Frame | Alu. 6061, 26” 440MM |
| Suspension Fork | ZOOM 187D |
| Brake | F/R: Mechanical TektroDisc Brakes, MD-280 |
| Freewheel | 7-speed, 14-28T, Silver |
| Tire | Schwalbe, Marathon 26″*1.75, Black |
| Saddle | Selle Royal, FREEWAY, Brown |
| Stem | Promax, MQ-527, adjustable |
| Crank | TL, ICA170ABlack, 44T, Black |
| Shifter | Shimano, Tourney, SL-RS45-7R, 7-Speed, Silver |
| Rear Derailleur | Shimano, Tourney, TY500, 7-Speed |
| Battery | Das-Kit, R3S-3613, 36V 13AH, 576Wh, with USB port |
| Motor | Das-Kit, X15, Rear drive motor, 36V 250W |
| Controller | Das-Kit, CT4, 36V 14A |
| Charger | Das-Kit, 36V2A |
| Display | Das-Kit, L6T |
| Front Light | Spanninga, Kendo, 36V, 30 Lux |
| Rear Light | Spanninga, Lineo, Integrated with battery |
| Bike Weight | 26kg |
| Max load | 120kg |
| Warranty | 12 months on Electronics & 2 Years on frame |
